Features & Benefits:-

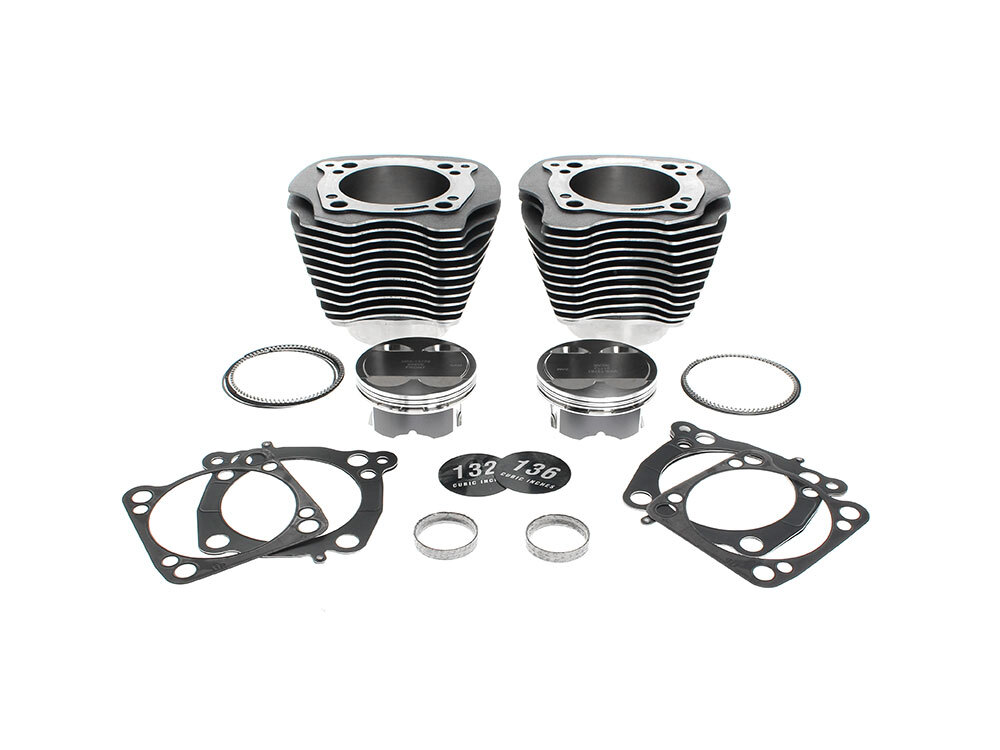

* Upgrades Milwaukee-Eight 117ci CVO models to 132ci or all the way to 136ci with S&S stroker flywheel # SS320-0605
* 4.320″ Bore & 4.500″ Stroke
* Forged Pistons.
* Compression Ratio with stock 88cc Heads: 132ci is 11.7:1 & 136ci is 12.0:1
* Compression Ratio with SE Extreme 94cc Heads: 132ci is 11.1:1 & 136ci is 11.4:1
* Black Granite Finish With Highlighted Fins.
* Bolt-on Kit, No Crankcase Machining Required.
* Includes H ead (0.040″) & Base Gaskets & Cam Cover Badge
Suggested Additional Purchase:
Dual spray piston cooling jet kit # SS310-1203
Tech Tips:-
* Will Not Fit 107ci Models.
* Use Care during assembly to avoid damage to Cylinder Spigots.
* Ring gap & Piston to Cylinder Clearance must be checked.
* Rev Limit should be set at 3500 rpm for Initial Run In Period.
* Re-Calibration of Ignition Timing & Fuel Mixture is required.
* NOT compatabile with the H D 4-5/8″ stroke flywheel
Proudly Made in the USA by S&S Cycle !
MFR PART No: 910-1010A
ROLLIES PART No: SS910-1010A
